连接器上的白色帽用于安全设置防尘保护以防止电击
并且我们自己用纯铜做变压器和功率电感器,
厚外壳压铸铝外壳,具有良好的导热性
内置EMI滤波装置,无信号干扰,广泛应用于各个领域
weho每月库存:普通款15万套,发货快捷;
包装前100%老化测试
低成本、高可靠性
24个月保修
尺寸:111*78*36mm(长*宽*高)
连接器上的白色帽用于安全设置防尘保护以防止电击
并且我们自己用纯铜做变压器和功率电感器,
厚外壳压铸铝外壳,具有良好的导热性
内置EMI滤波装置,无信号干扰,广泛应用于各个领域
weho每月库存:普通款15万套,发货快捷;
包装前100%老化测试
低成本、高可靠性
24个月保修
尺寸:111*78*36mm(长*宽*高)
Model | MS-75-5 | MS-75-12 | MS-75-15 | MS-75-24 |
Specification | ||||
DC Output voltage | 5V | 12V | 15V | 24V |
Output voltage range(Note:2) | ±2% | ±1% | ±1% | ±1% |
Rated output current | 15A | 6A | 5A | 3A |
Output current range | 0~15A | 0~6A | 0~5A | 0~3A |
Wave and noise(Note:3) | 100mVp-p | 75mVp-p | 75mVp-p | 75mVp-p |
Inlet stability(Note:4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability(Note:5) | ±1% | ±0.5% | ±0.5% | ±0.5% |
DC output power | 75W | 75W | 75W | 75W |
Efficiency | 73% | 78% | 78% | 82% |
Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
AC input voltage range | 85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC | |||
Input current | 2A/115V 1A/230V | |||
AC Inrush current | Cold-start current 30A/115V 60A/230V | |||
Leakage current | <3.5mA/240VAC | |||
Overload protection | 105%-150% Type: pulsing hiccup shutdown Reset: auto recovery | |||
Temperature coefficient | ±0.03%/°C(0~50°C) | |||
Setup, rise, hold up time | 800ms, 50ms, 10ms/150V 300ms,50ms,80ms/230v | |||
Vibration | 10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes | |||
Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||
Working temperature and humidity | -10°C~+60°C(Refer to output load derating curve),20%~90%RH | |||
Store temperature and humidity | -20°C~+85°C,10%~95%RH | |||

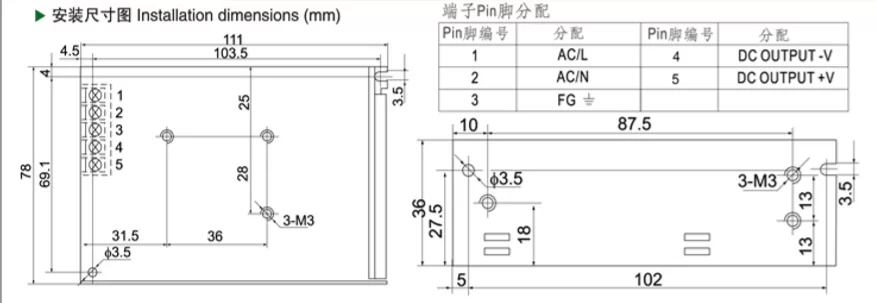

Overall dimension | 111X78X36mm (L*W*H) | |||
Weight | 0.55kgS | |||
Safety standards | UL 1012 TUV EN6050(IEC,ul1950)Approved | |||
EMC standards | CISPR22(EN55022),IEC801-2,3,4 IEC555-2Verification |
