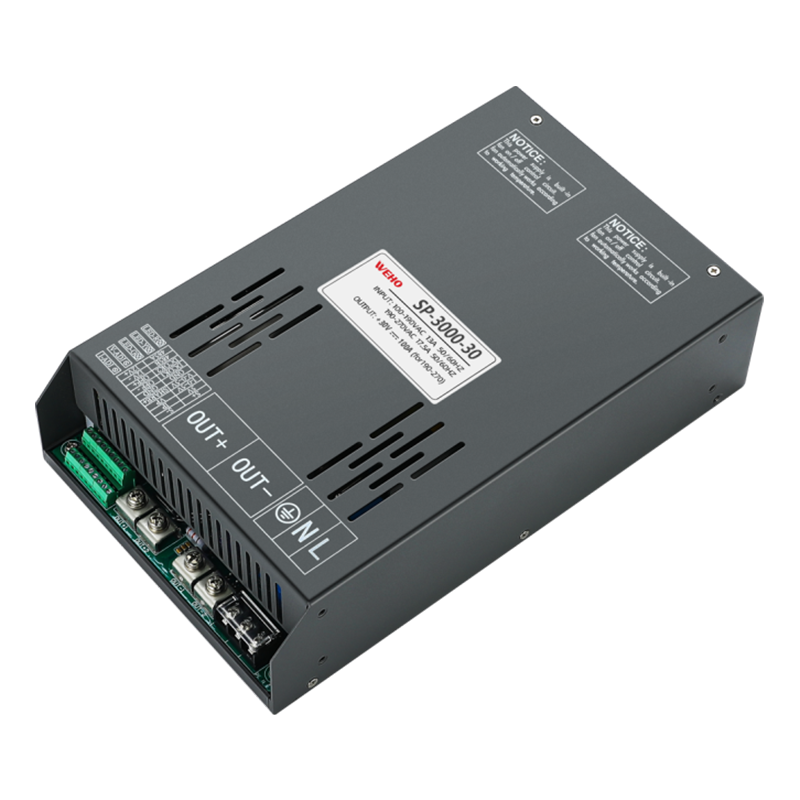

SP-3000W 单组输出电源
SP-3000是一款3KW单输出机架式交流转直流电源。整系列输入电压范围为95-190VAC，可为大多数工业需求提供直流输出
每个底盘均可通过内置转速可控风扇进行空气冷却，运行温度接近60°C。内置的多重功能，如输出电压、电流可调、电流共享、远程开/关控制、485通信控制、辅助电源等，为各种灵活设计提供了多种可能性。
如有需要，请随时通过电子邮件联系我们 : weho@chnwh.com
- 说明
概述
单组输出:功率3000W

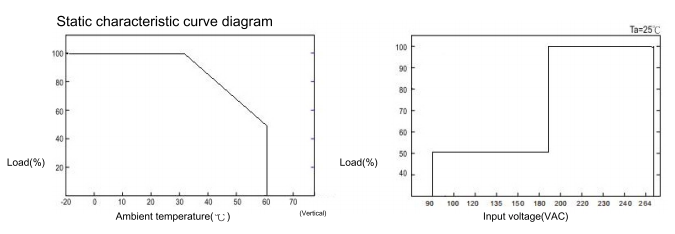

输入电压:95-190VAC(输出电流50%)195-265VAC(输出电流100%)
常见规格
| 型号Model | SP-3000-12 | SP-3000-24 | SP-3000-30 | SP-3000-36 | SP-3000-48 | SP-3000-60 | SP-3000-220 |
| 直流输出电压 DC voltage |
12V | 24V | 30V | 36V | 48V | 60V | 220V |
| 额定电流 Rated current |
130A | 125A | 100A | 83.3A | 62.5A | 50A | 13.6A |
| 电流范围 Current range |
0-130A | 0-125A | 0-100A | 0-83.3A | 0-62.5A | 0-50A | 0-13.6A |
| 额定功率 Rated Power |
2700W | 3000W | |||||
| 纹波 Ripple |
200mV | 200mV | 230mV | 260mV | 300mV | 500mV | 1000mV |
| 恒流最佳范围 Constant current optimum range |
6-15V | 12-24V | 15-30V | 18-36V | 24-48V | 30-60V | 110-220V |
| 电压精度 Rated voltage accuracy |
±1.0% | ||||||
| 线路调整率 Line Regulation |
±1.0% | ||||||
| 负载调整率 Load Regulation |
±1.0% | ||||||
| 启动与上升时间 Startup&Rise Time |
1500mS,700mS/230VAC(满载)(Fully loaded) | ||||||
| 电压范围 Voltage range |
95-190VAC(Output Current 50%),195-265VAC(Output Curent 100%)95-190VAC(输出电流50%),195-265VAC(输出电流100%) | ||||||
| 频率范围 Frequency range |
45Hz-65Hz | ||||||
| 功率因数 Power Factor |
PF≥0.99/230VAC(满载)(Fully loaded) | ||||||
| 效率 Efficiency(MAX) |
0.9 | 0.9 | 0.91 | 0.915 | 0.92 | 0.925 | 0.93 |
| 交流电流 AC Current |
<18A | ||||||
| 漏电流 Leakage Current |
<3.0mA/240VAC | ||||||
| 短路保护 Short Circuit |
当输入恒流且电压低于额定电压的10%时，输出在1秒后关闭并锁定，并在重新启动后恢复。 When the constant current is entered and the voltage is lower than 10%of the rated voltage,the output is shut down and locked after 1 second,and recovers after restarting. |
||||||
| 过流 Over current |
用户可以设置过电流值，使输出延迟5秒，然后关闭输出，重新启动后恢复。 The user can set the over-current value to delay the oufput for 5 seconds and then shut down the output,and then resume after restarting. |
||||||
| 过压 Overpressure |
用户可以设置过压值以关闭输出电压，并在重启后恢复。 Users can set the overvoltage value to shut down the output voltage,and restore after restart. |
||||||
| 过温 Over temperature |
Shut down the output,automatically recover or restart after the temperature drops. 关闭输出，温度下降后自动恢复或重新启动。 |
||||||
| 输出电压调整 Output voltage adjustment |
0-15V | 0-26.4V | 0-33V | 0-39.6V | 0-52.8V | 0-66V | 0-242V |
| 输出恒流调节 Output constant current adjustment |
0-130A | 0-125A | 0-100A | 0-83.3A | 0-62.5A | 0-50A | 0-13.6A |

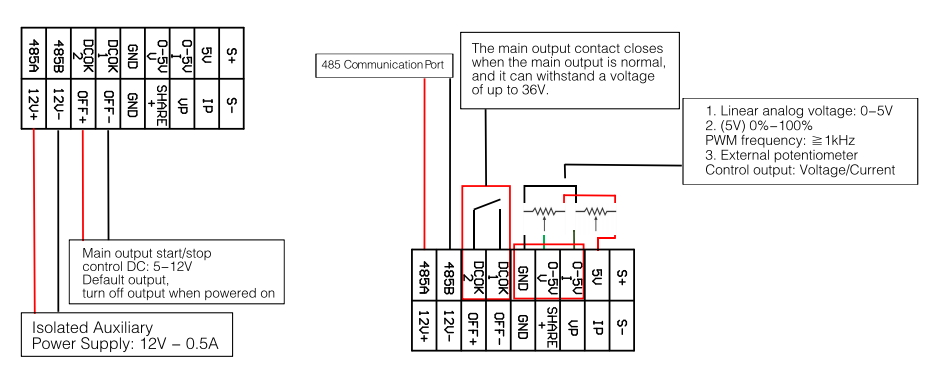

| 485通信 485 Communications |
并联均流Parallel current sharing | ||||||
| 隔离辅助电源 Isolated auxiliary power supply |
12V 0.5A | ||||||
| 输出远程开关 Output remote switch |
默认电源开启，高电平电源关闭(5V-12V) Default power on,high level power off(⑤V-12V) |
||||||
| 报警信号输出 Alarm signal output |
电源良好信号(干触点≤36V,0.1A) Power Good Signal(Dry Contact≤36V,0.1A) |
||||||
| 工作温度 Operating temperature |
-20-+60℃ | ||||||
| 工作湿度 Operating humidity |
-20-90%RH无冷凝 -20-90%RH No condensation |
||||||
| 储存温度和湿度 Storage emperatureandhumidity |
-40-+85℃,相对湿度10-95%无冷凝 -40-+85℃,10-95%RHNo condensation |
||||||
| 抗震性能好 Vibration resistance |
10-500Hz,2G10分钟/周期， X、Y、Z60分钟 10-500Hz,2G10Min/cycle,X、Y、 Ż60Min_ |
||||||
| 绝缘电阻 Insulation resistance |
输入输出：100Mhms/500VDC/25°C/70%RH Input to Output:100Mhms/500VDC/25°C/70%RH |
||||||
| 耐压性 Pressure resistance |
I/P-O/P:2KVAC IP-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| 尺寸 Size |
289×174×69mm | ||||||
| 重量 Net weight |
3.3 kg | ||||||
外形尺寸（毫米）
