- 说明
| 型号Model 性能Specification |
SP-6000-24 | SP-6000-36 | SP-6000-48 | SP-6000-60 | SP-6000-110 | SP-6000-220 |
| 直流输出电压 DC voltage |
24V | 36V | 48V | 60V | 110V | 220V |
| 额定电流 Rated current |
250A | 166.6A | 125A | 100A | 54.5A | 27.2A |
| 电流范围 Current range |
0-250A | 0-166.6A | 0-125A | 0-100A | 0-54.5A | 0-27.2A |
| 额定功率 Rated Power |
6000W | |||||
| 纹波 Ripple |
500mV | 500mV | 600mV | 600mV | 1000mV | 1500mV |
| 恒流最佳范围 Constant current optimum range |
12-24V | 18-36V | 24-48V | 30-60V | 55-110V | 110-220V |
| 电压精度 Rated voltage accuracy |
±1.0% | |||||
| 线路调整率 Line Regulation |
±1.0% | |||||
| 负载调整率 Load Regulation |
±1.0% | |||||
| 启动与上升时间 Startup&Rise Time |
1500mS,700mS/230VAC(满载)(Fully loaded) | |||||

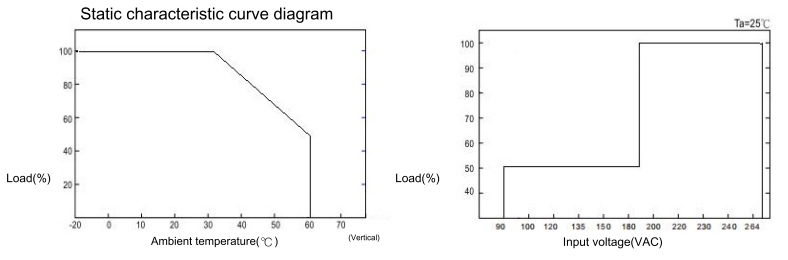

| 电压范围 Voltage range |
95-190VAC(Output Curent 50%),195-265VAC(Output Curent 100%) 95-190VAC(输出电流50%),195-265VAC(输出电流100%) | |||||
| 频率范围 Frequency range |
45Hz-65Hz | |||||
| 功率因数 Power Factor |
PF≥0.99/230VAC(满载)(Fully loaded) | |||||
| 效率 Efficiency(MAX) |
90% | 91.5% | 92% | 92% | 92.5% | 93% |
| 交流电流 AC Current |
<56A | |||||
| 漏电流 Leakage Current |
<3.0mA/240VAC | |||||
| 短路保护 Short Circuit |
当输入恒流且电压低于额定电压的10%时，输出在1秒后关闭并锁定，并在重新启动后恢复。 When the constant current is entered and the voltage is lower than 10%of therated voltage,the output is shut down andlocked after 1 second,and recovers after restarting. |
|||||
| 过流 Over current |
用户可以设置过电流值，使输出延迟5秒，然后关闭输出，重新启动后恢复。 The user can set the over-current value to delay the oufput for 5 seconds and then shut down the output,and then resume after restarting. |
|||||
| 过压 Overpressure |
用户可以设置过压值以关闭输出电压，并在重启后恢复。 Users can set the overvolitage value to shut down the output voltage,and restore after restart. |
|||||
| 过温 Over temperature |
Shut down the output,automatically recover or restart after the temperature drops. 关闭输出，温度下降后自动恢复或重新启动。 |
|||||
| 输出电压调整 Output voltage adjustment |
0-26.4V | 0-39.6V | 0-52.8V | 0-66V | 0-121V | 0-242V |
| 输出恒流调节 Output constant current adjustment |
0-250A | 0-166.6A | 0-125A | 0-100A | 0-54.5A | 0-27.2A |
| 485通信 485Communications |
Modbus MODBUS Communication Protocol | |||||
| 隔离辅助设备 Isolated auxiliary |
12V0.5A(需要定制)(Need customization) | |||||
| 输出远程开关 Output remote switch |
默认电源开启，高电平电源关闭(5V-12V)(需要定制) Default power on,high level power off(5V-12V)(Need customization) |
|||||
| 报警信号输出 Alam signaloutput |
电源良好信号(干触点≤36V,0.1A)(需要定制) Power Good Signal(Dry Contact≤36V,0.1A) (Need customization) |
|||||
| 工作温度 Operating temperature |
-20-+60℃ | |||||
| 工作湿度 Operating humidity |
-20-90%RH无冷凝 -20-90%RHNo condensation |
|||||
| 储存温度和湿度 Storage temperature andhumidity |
-40-+85℃,相对湿度10-95%无冷凝 -40-+85℃,10-95%RH No condensation |
|||||
| 抗震性能好 Vibration resistance |
10-500Hz,2G10分钟/周期， X、Y、Z60分钟 10-500Hz,2G10 Min/cycle,X、Y、Z60Min |
|||||
| 绝缘电阻 insulation resistance |
输入输出：100Mhms/500VDC/25°C/70%RH Input to Output:100Mhms/500VDC/25°C/70%RH |
|||||
| 耐压性 Pressure resistance |
I/P-O/P:2KVAC IP-FG:2KVAC O/P-FG:0.5KVAC | |||||
| 尺寸 size |
432×179×242mm | |||||
| 重量 | 9kg | |||||
| net weight | ||||||
