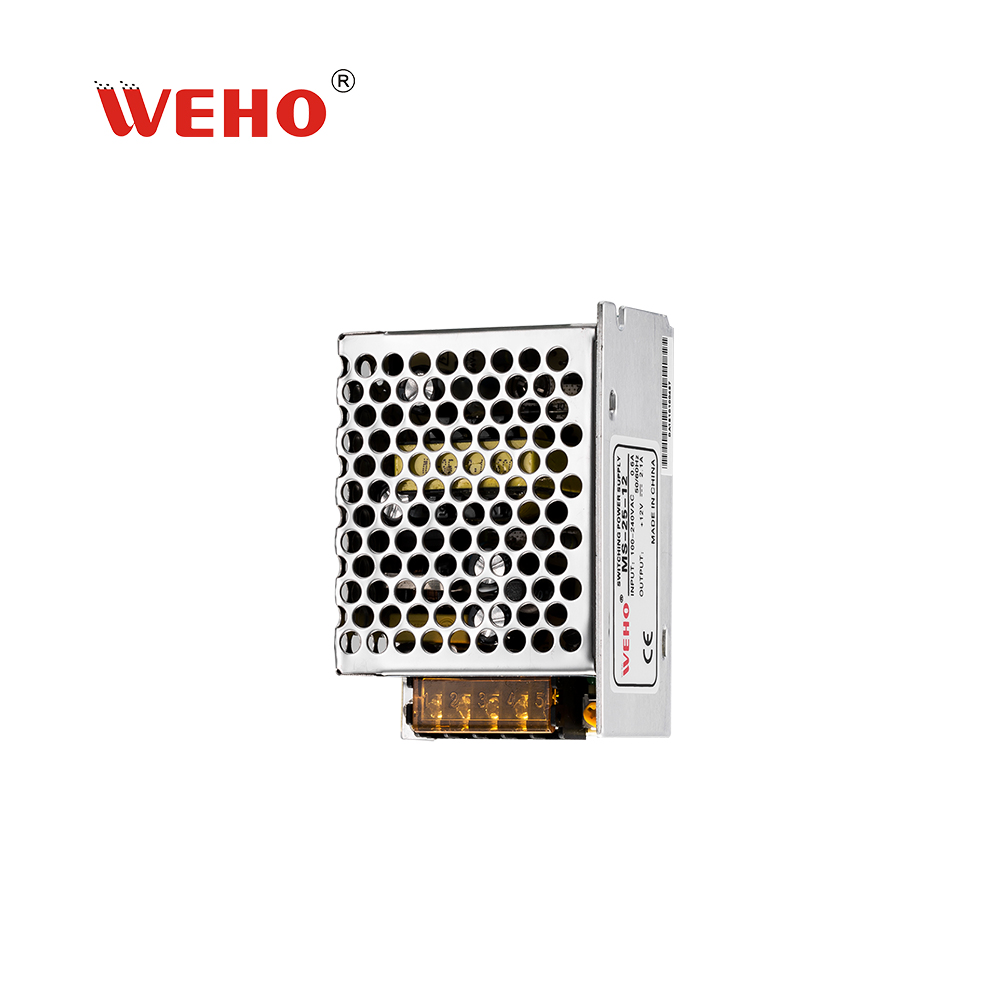

小尺寸 25w 交流/直流电源

伟豪的 MS-25 系列电源是一种迷你型封闭式电源，可作为各种工业应用的高性价比电源解决方案。

除了高达80%的高效率外，金属网状外壳的设计增强了MS的散热能力，全系列在空气对流下无需风扇即可在-10℃至50℃之间运行。

给我们发邮件报价

特征

连接器上的白色帽用于安全设置防尘保护以防止电击

我们可以定制不同的输出电压 12v 24v 13.5v 27v 36v 48v 60v 70v 110v

并且我们自己用纯铜做变压器和功率电感器，

weho每月库存：普通款15万套，发货快捷；

我们是12年的电源制造商

通用交流输入/全范围（高达 264VAC）

基于 MOQ 100 件的定制标签。

100% 满载老化测试

尺寸：84*58*38mm（长*宽*高）

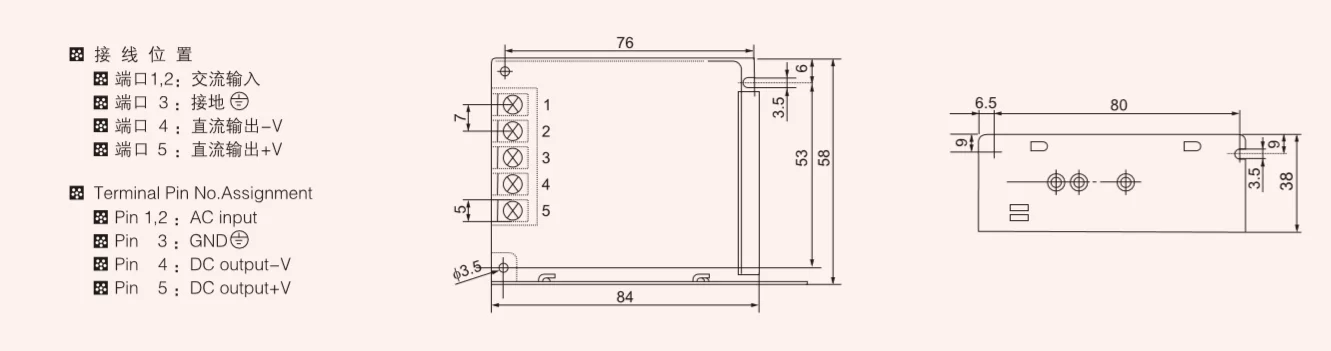

设计

规格型号

model		MS-25-12	MS-25-15	MS-25-24
output	Dc output voltage	12V	15V	24V
	Output voltage tolerance	±1%	±1%	±1%
	Rated output current	5A	1.4A	1.1A
	Output current range	0-5A	0-1.4A	0-1.1A
	Output power	24W	24W	24W
	Ripple and the noise	100mVp-p	120mVp-p	150mVp-p
	Dc voltage adjustable scope	±10%	±10%	±10%
	Start, rise, keep time	200ms,50ms,20ms/230VAC
input	Input voltage range	170～264VAC 47～63Hz，235～373VDC
	Exchange input current	0.35A/230VAC
	efficiency	70%	76%	78%
	Impulse current	Cold start current 30A/230VAC
	Leakage current	＜0.5mA/240VAC
Protection characteristics	Overload protection	Protection way: fold layer type load current limiting, abnormal conditions can be removed recovery
environment	Working temperature, humidity	-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve)
	Keep temperature, humidity	-20℃～+85℃;10%～95%RH No condensation
	Vibrate resistance	10～500Hz，2G 10min./1Cycle time, 60 minutes, the axis
security	Compression sex	Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC
	Insulation resistance	Between the input and output, the output and input: with ground: 100 M / 500 VDC Ohms
Complies with the standards	Safety standards	Meet the UL1012 requirements
	EMC standard	meet FCC PART15J conditions CLASS B
other	weight	0.15kg 845838（LWH）
	packaging	0.15kg/80pcs/13kg/0.9CUFT
note	1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
