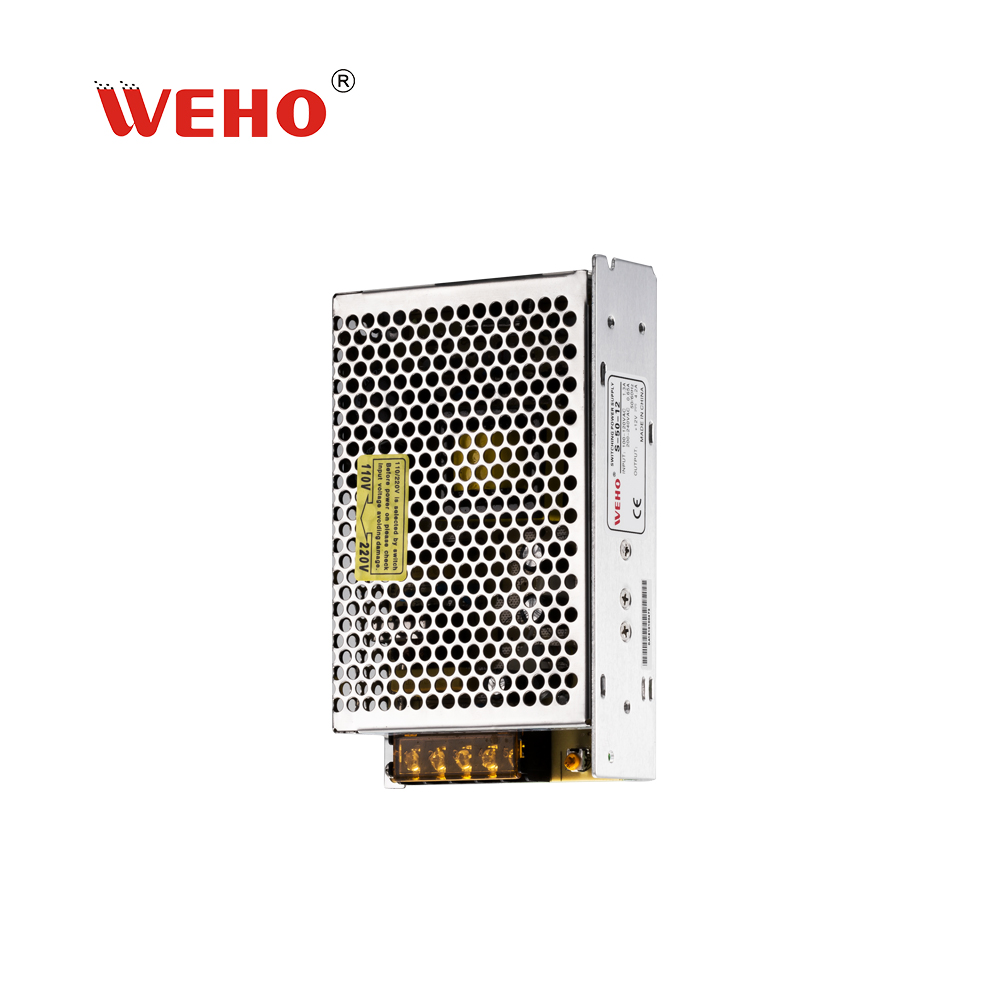

防尘白帽,更安全防触电
输入电压:90-132/180-264VAC,开关改变
具有短路/过载/过压保护
我们可以根据客户的要求设计产品
短路保护:自动恢复
我们接受样品订单
100% 满载老化测试
S-50 30pcs/ctn
尺寸:159*98*38mm(长*宽*高)
防尘白帽,更安全防触电
输入电压:90-132/180-264VAC,开关改变
具有短路/过载/过压保护
我们可以根据客户的要求设计产品
短路保护:自动恢复
我们接受样品订单
100% 满载老化测试
S-50 30pcs/ctn
尺寸:159*98*38mm(长*宽*高)
Model Specification | S-50-5 | S-50-12 | S-50-15 | S-50-24 |
DC Output voltage | 5V | 12V | 15V | 24V |
Output voltage range(Note:2) | ±2% | ±1% | ±1% | ±1% |
Rated output current | 10A | 4.2A | 3.4A | 2.1A |
Output current range | 0~10A | 0~4.2A | 0~3.4A | 0~2.1A |
Wave and noise(Note:3) | 75mVp-p | 60mVp-p | 60mVp-p | 50mVp-p |
Inlet stability(Note:4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability(Note:5) | ±1% | ±0.5% | ±0.5% | ±0.5% |
DC output power | 50W | 50.4W | 51W | 50.4W |
Efficiency | 71% | 78% | 78% | 80% |
Adjustable range for DC voltage | +10,-5% | ±10% | ±10% | ±10% |
AC input voltage range | 85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC | |||
Input current | 1.3A/115V 0.65A/230V | |||
AC Inrush current | Cold-start current 18A/115V 36A/230V | |||
Leakage current | <0.5mA/240VAC | |||
Overload protection | 105%-150% Type: pulsing hiccup shutdown Reset: auto recovery | |||
Temperature coefficient | ±0.03%/°C(0~50°C) | |||
Setup, rise, hold up time | 200ms, 100ms, 30ms | |||
Vibration | 10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes | |||

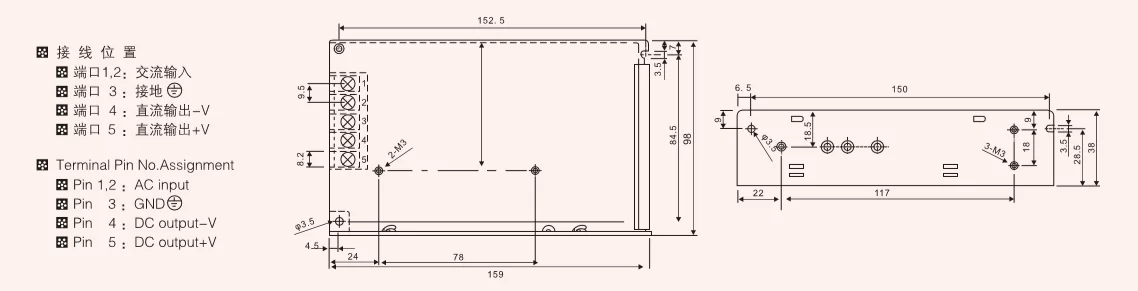

Overall dimension | 159X97X38mm (L*W*H) | |||
Weight | 0.5kgS | |||
Safety standards | Meet UL 1012 requirement(Not apply for the mark) |
