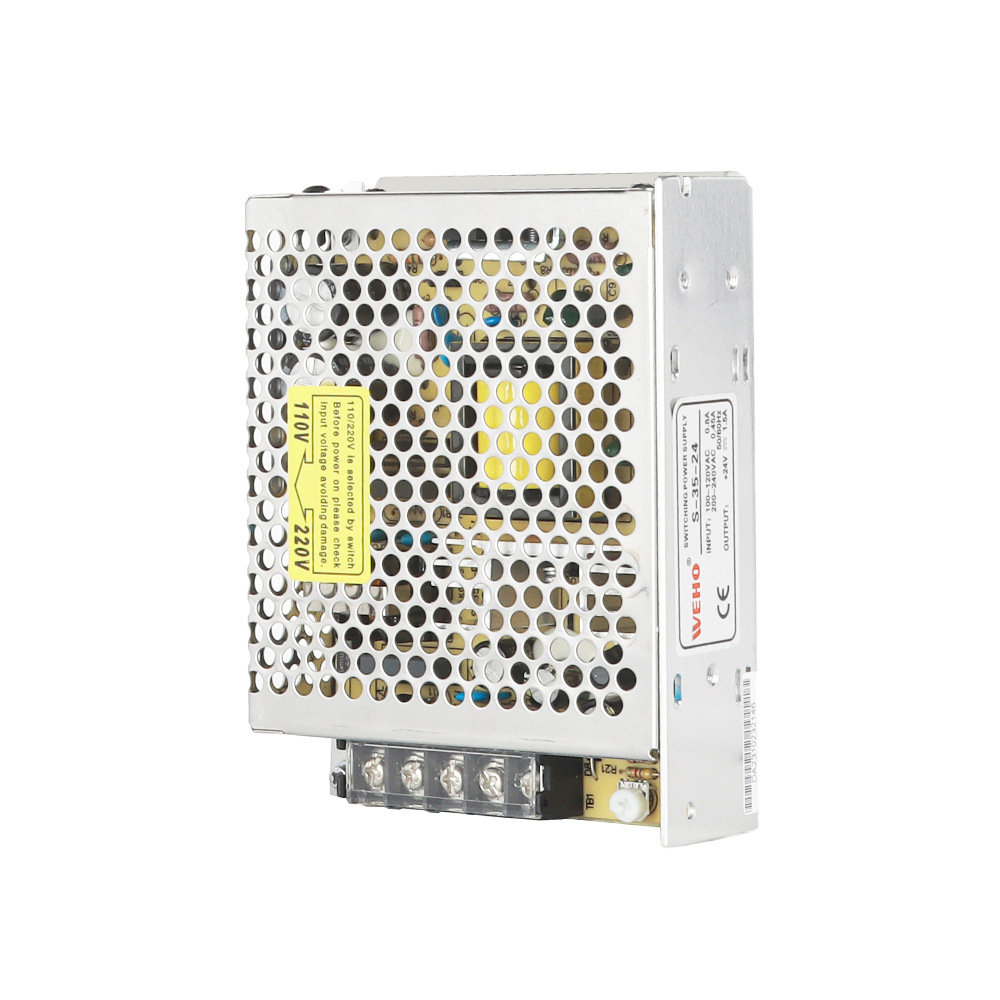

伟豪的 S-35W 是封闭式开关电源低价高可靠性 105℃输出电容交流输入电源。

可以保持电压稳定的开关电源。

用于 LED 灯条屏幕照明监视器电源的出色开关电源 110V/220V 交流输入范围，通过自然空气对流冷却。

给我们发邮件报价

伟豪每月库存：普通款20万套，发货快

输入电压：90-132/180-264VAC，开关改变

保护：短路/过载/过压

连接器上的白帽

100% 满载老化测试

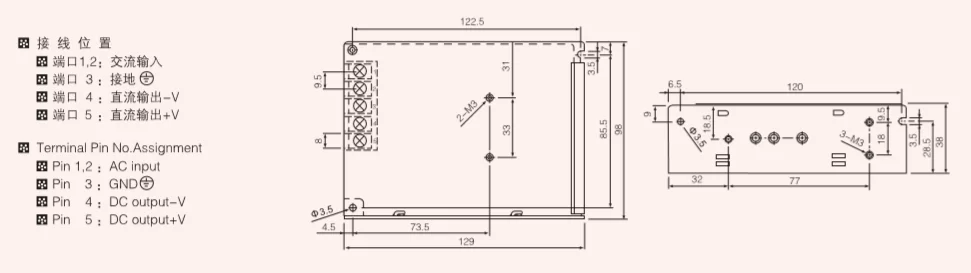

尺寸：129*98*38mm（长*宽*高）

MODEL		S-35-5	S-35-9	S-35-12	S-35-15	S-35-24
OUTPUT	DC VOLTAGE	5V	9V	12V	15V	24V
	VOLTAGE TOLERANCE	±2%	±1%	±1%	±1%	±1%
	RATED CURRENT	7A	3.6A	3A	2.4A	1.5A
	CURRENTRANGE	0-7A	0-3.6A	0-3A	0-2.4A	0-1.5A
	RATED POWER	35W	32.4W	36W	36W	36W
	RIPPLE &NOISE(MAX)	75mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	DC VOLTAGEFRE QUENCY RANGE	+10,-5%	±10%	±10%	±10%	±10%
	SETUP,RISE,HOLD TIME	200ms,100ms,300ms
INPUT	VOLTAGERANGE	85~132 VAC/170~264VACselected47~63 Hz 240~370VDC
	AC CURRENT	0.8 A/115 V 0.45A/ 230 V
	EFFICIENCY	70%	72%	76%	78%	78%
	INRUSH CURRENT	Cold start 18A/115V 36A/230V
	LEAKAGE CURRENT	<2mA/240VAC
ENVIRONMENT	WORKING TEMP.& HUMIDITY	-10~+60 20%~90 %RH
	STORAGE TEMP.& HUMIDITY	-20~+85 10%~95 %RH
	VIBRATION	10~500Hz,2G 10min./1 cycle,period for 60min,each alongX,Y,Z axes
STANDARDS	SAFETY STANDARDS	Design refer to UL1012
	EMC STANDARDS	Design refer to FCC part15 J Conduction Class B
OTHERS	WEIGHT	0.41Kg
	PACKING	30pcs/13.5Kg/0.86CUFT
NOTE	1. Tolerance: Includes set up tolerance, line regulation and load regulation.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire teminated with a
	0.1μf & 47μf parallel capacitor.
