连接器上的白色帽用于安全设置防尘保护以防止电击
weho每月库存:普通款20万套,发货快捷;
输入电压:90-132/180-264VAC,开关改变
宽工作温度范围:-10′ C- +50′ C
保护:短路/过载/过压
100% 满载老化测试
尺寸:199*98*38mm(长*宽*高)
连接器上的白色帽用于安全设置防尘保护以防止电击
weho每月库存:普通款20万套,发货快捷;
输入电压:90-132/180-264VAC,开关改变
宽工作温度范围:-10′ C- +50′ C
保护:短路/过载/过压
100% 满载老化测试
尺寸:199*98*38mm(长*宽*高)
Model | S-120-5 | S-120-12 | S-120-15 | S-120-24 |
DC output voltage | 5V | 12V | 15V | 24V |
Output voltage tolerance | ±2% | ±1% | ±1% | ±1% |
Rated output current | 24A | 10A | 8A | 5A |
Output current range | 0-24A | 0-10A | 0-8A | 0-5A |
Ripple and noise | 50mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
Inlet stability | ±0.5% | ±0.5% | ±0.3% | ±0.2% |
Load stability | ±1% | ±0.5% | ±0.3% | ±0.2% |
DC output power | 120W | 120W | 120W | 120W |
Efficiency | 79% | 84% | 85% | 85% |
Output voltage adjustment range | ±10% | ±10% | ±10% | ±10% |
AC input voltage range | 85~132VAC/170~265VAC/47~63VAC,120~370VDC | |||
Input current | 0.6A/115V 0.35A/230V | |||
AC impulse current | Cold-start current 15A/115V 30A/230V | |||
Leakage current | <0.75mA/240VAC | |||
Setup rise hold up time | 800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC | |||
Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes | |||
Withstand voltage | I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
Isolation resistance | I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ | |||
Working temperature and humidity | -10°C~+60°C,20~90%RH | |||
Store temperature and humidity | -20°C~+85°C,10~95%RH | |||

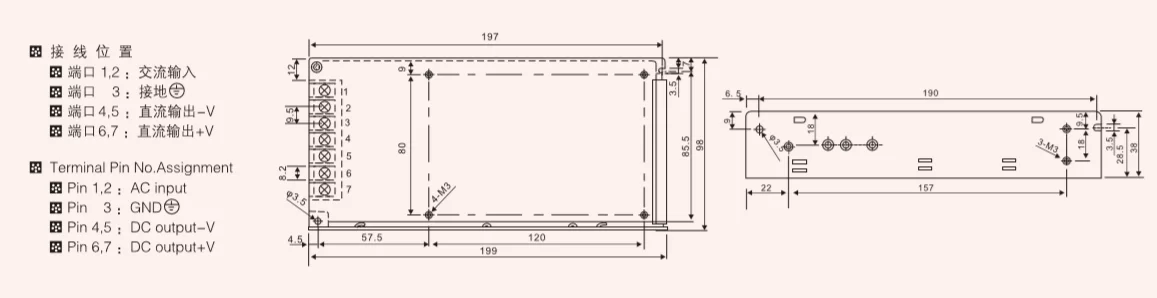

Overall dimension | 199*98*38mm / 30pcs per carton | |||
Weight | 0.62Kgs |
