- 说明

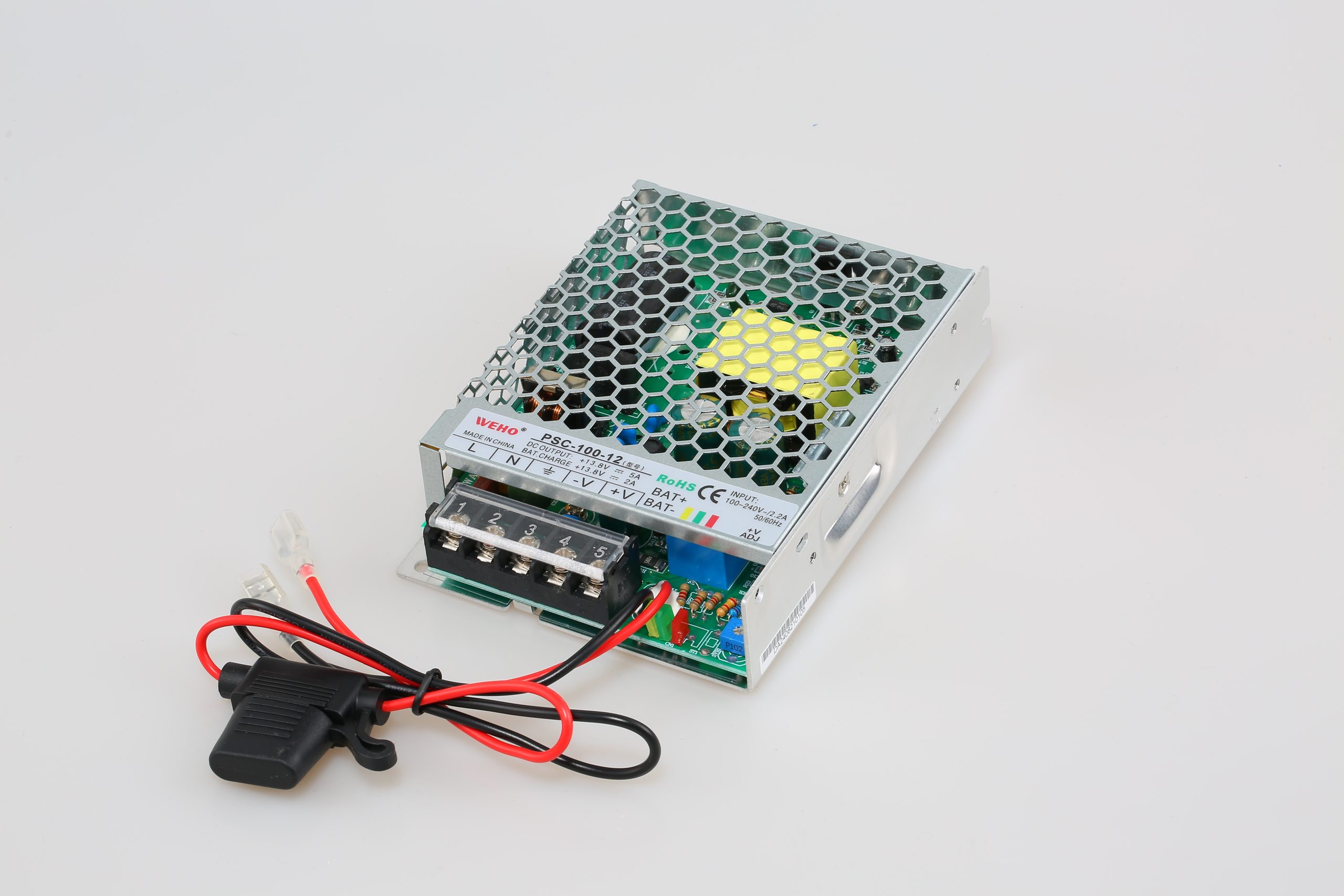

| 型号 | PSC-100-12 | PSC-100-24 | ||||||
| Model | ||||||||
| 直流输出电压 | CH1:13.8V | CH2:13.8V | CH1:27.6V | CH2:27.6V | ||||
| DCOutputVoltage | ||||||||
| 输出电压容差 | ±1% | ±1% | ||||||
| OutputVoltageTolerance | ||||||||
| 额定输出电流 | 5.0A | 2A(charge) | 2.5A | 1A(charge) | ||||
| RatedOutputCurrent | ||||||||
| 输出电流范围 | 0~7A | 0~3.5A | ||||||
| OutputCurrentRange | ||||||||
| 输出功率 | 100W | 100W | ||||||
| OutputPower | ||||||||
| 纹波和噪声 | 150mVp-p | 200mVp-p | ||||||
| RippleandNoise | ||||||||
| 直流电压可调范围 | CH1:11.3~14.9V | CH1:21.3~29.8V | ||||||
| AdjustableRangeofDCVoltage | ||||||||
| 启动、上升和保持时间 | 600ms,50ms,80ms/230VAC.1200ms.50ms.16ms/115VAC.
90~264VAC or 135~370VDC 2.4A/115VAC 1.2A/230VAC |
|||||||
| Start-up,Rise,andHoldTime | ||||||||
| 输入电压范围 | ||||||||
| InputVoltageRange | ||||||||
| 交流输入电流 | ||||||||
| AClnputCurrent | ||||||||
| 效率 | 87% 89% | |||||||
| Efficiency | ||||||||
| 冲击电流 | 冷启动电流Cold Start Current 30A/115VAC 50A/230VAC
<1mA/240VAC |
|||||||
| InrushCurrent | ||||||||
| 漏电流 | ||||||||
| LeakageCurrent | ||||||||
| 过载保护 | 过载保护将在105%至115%的额定输出功率下启动。 | |||||||
| OverloadProtection | Overload protection will be activated at105%to 115%of the rated output power. 保护模式： AC充电模式：隔离模式，系统可以在去除异常负载条件后自动恢复运行。 |
|||||||
| Protection mode:AC charging mode:Isolation mode,the system can automatically esume operation after the abnormal load condition is removed | ||||||||
| 低电池电压保护 | 9.5~10.3V 19~20.5V | |||||||
| LOwBatteryVoltageProtection | ||||||||
| 保护模式：输出切断。 | ||||||||
| Protection mode:Output cut-off. | ||||||||
| UPS功能介绍 | 电池高效长期在线浮充，充满度超过97% | |||||||
| IntroductiontoUPSFunction | Long-term online float charging for batteries with high efficiency,over 97%fullness. 满电时自动停止充电，以防止过度充电并延长电池寿命 |
|||||||
| Automatically stops charging when full to prevent overcharge and extend battery life. 在市电和电池之间自动切换，无需延迟，无需手动操作。 |
||||||||
| Automatic switch between utility power and battery without delay,no manual operation needed. 冷启动能力允许UPS在没有市电的情况下直接从电池启动，满足紧急需求。。 |
||||||||
| 工作温度和湿度 | Cold start capability allows UPSto start directly from battery in case of no utility power,meeting emergency needs. – 20℃至~60℃20%~90%RH(请参考负载降额曲线)。 |
|||||||
| OperatingTemperatureandHumidity | -20℃ to~60℃;20%~90%RH(Please refer to the load derating curve). – 20℃~+85℃;10%~95%RH不凝结 |
|||||||
| 存储温度和湿度 | ||||||||
| StorageTemperatureandHumidity | -20℃~+85℃;10%~95%RH Non-condensing | |||||||
| 抗冲击能力 | 10~500Hz,2G 10分钟。/每个周期，每个轴持续60分钟 | |||||||
| ShockResistance | 10~500Hz,2G10min./percycle,duration 60 minutes,on each axis. | |||||||
| 耐压能力 | 输入和输出之间：1.5kVAC输入和接地之间：1.5kV AC输出和接地间：0.5kVDC | |||||||
| VoltageWithstandingCapability | Between input and output:1.5KVAC Between input and ground:1.5KVAC Between output and ground:0.5K VDC. 输入与输出、输入与接地、输出与接地之间：100 MQ/500 VDC |
|||||||
| 绝缘电阻 | ||||||||
| InsulationResistanc | Between input and output,input and ground,output and ground:100MΩ/500VDC
129*97*30mm(L*W*H) |
|||||||
| 尺寸 | ||||||||
| Dimensions | ||||||||
| 包装 | 0.42kg/50pcs/21.5kg/0.041m³ | |||||||
| Packaqing | ||||||||
