- 说明
| 型号Model 性能Specification |

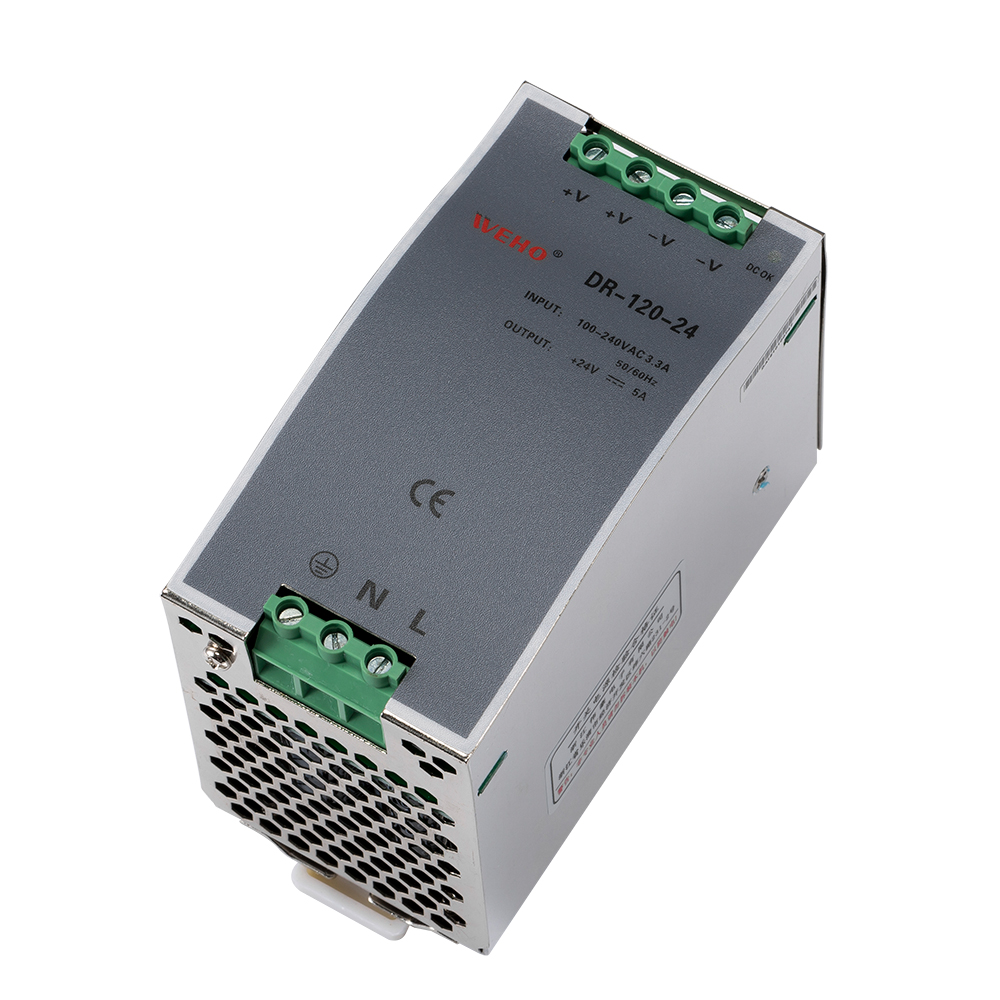

DR-120-12 | DR-120-15 | DR-120-24 | DR-120-48 |
| 直流输出电压、电流 DC output voltage,current |
12V 0～10A | 15V 0～8A | 24V 0～5A | 48V 0～2.5A |
| 纹波及噪音 Wave and noise |
85mVp-p | 85mVp-p | 85mVp-p | 100mVp-p |
| 进线稳定度 Inlet wire stability |
±0.5% | ±0.5% | ±0.5% | ±0.5% |
| 负载稳定度 Load stability |
±1% | ±0.5% | ±0.5% | ±0.5% |
| 效率 Efficiency |
80% | 81% | 84% | 85% |
| 直流电压可调范围 Adjustable range for DC voltage |
±10% | ±10% | ±10% | ±10% |
| 输入电压范围 Input voltage range |
85～264VAC 120～370VDC 47～63Hz | |||
| 冲击电流 Impact current |
冷启动电流 20A/115VAC 40A/230VAC Cold start current |
|||
| 过载保护 Overload protection |
105%～150%切断输出，自动恢复 105%～150%cut off the output,automatic recovery |
|||
| 过电压保护 Over voltage protection |
120%～140%关闭输出，电源重启后可恢复输出 120%～140%shut down O/P voltage,re-power on to recover |
|||
| 启动、上升、保持时间 Setup,rise,hold up time |
500ms,70ms,30ms/230VAC满负载at full load | |||
| 耐压性 Withstand voltage |
输入输出间：1.5KV输入与外壳间：1.5KV输出与外壳间：0.5KV一分钟 I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5kV 1minute |
|||
| 隔离电阻 Isolation resistance |
输入输出间输入与外壳间输出与外壳间：500VDC/100MΩ I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ |
|||
| 工作温度 Working temperature |
-10℃~+50℃ | |||
| 尺寸 Dimension |
65.5×125.2×100mm | |||
| 重量 Weight |
0.8kg | |||
| 包装 Packing |
45.5×35×26CM/24PCS/19.2kg | |||
