- 说明

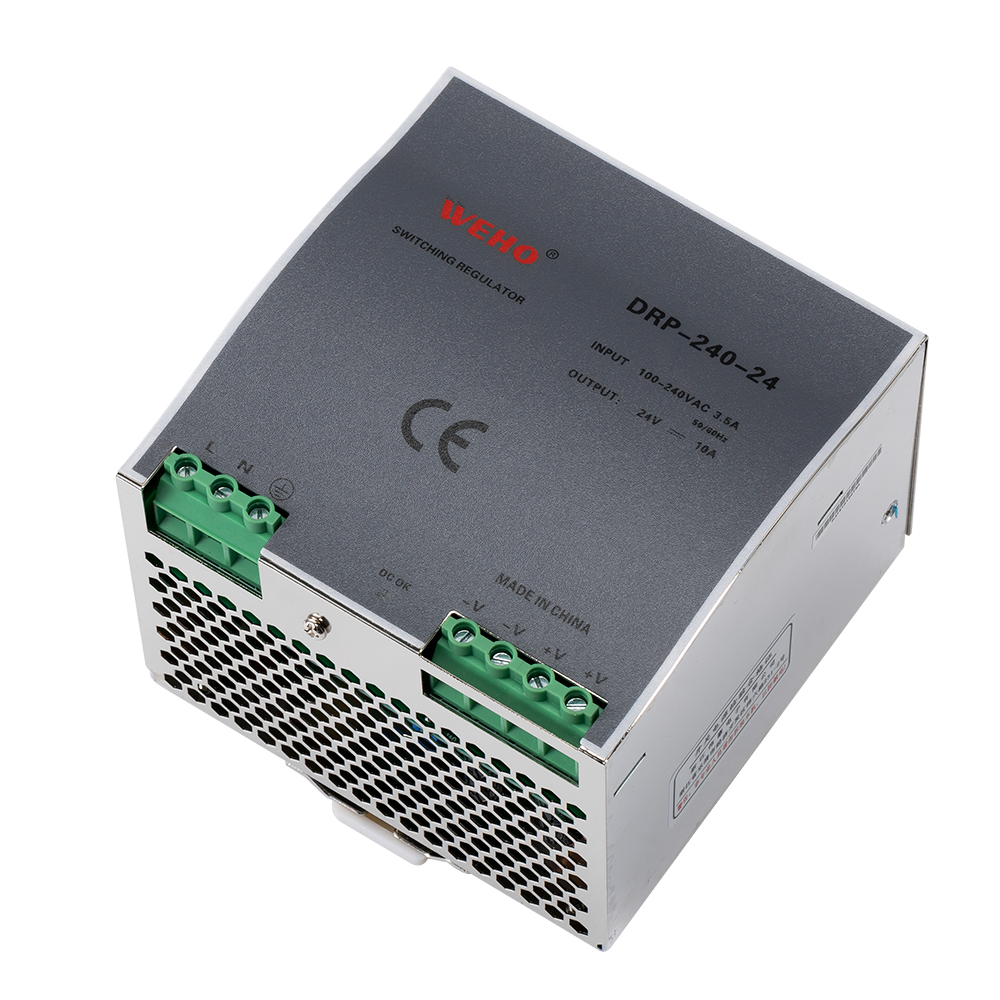

| 型号Model | DRP-240-24 | DRP-240-48 | |
| 性能Specification | |||
| 直流输出电压、电流 DC output voltage,current |
24V 0～10A | 48V 0～5A | |
| 纹波及噪音 Wave and noise |
80mVp-p | 150mVp-p | |
| 进线稳定度 inlet wire stability |
±0.5% | ±0.5% | |
| 负载稳定度 Load stability |
±1% | ±0.5% | |
| 效率 Efficiency |
84% | 85% | |
| 直流电压可调范围 Adjustable range for DC voltage |
±10% | ±10% | |
| 输入电压范围 Input voltage range |
85～264VAC 120～370VDC 47～63Hz | ||
| 冲击电流 Impact current |
冷启动电流 Cold start current |
27A/115VAC 45A/230VAC | |
| 过载保护 Overload protection |
105%～150%切断输出，自动恢复 105%～150%cut off the output,automatic recovery |
||
| 过电压保护 Over voltage protection |
30～36V为24V型；54～60V为48V型 30～36V for 24V model;54～60V for 48V model |
||
| 启动、上升、保持时间 Setup,rise,hold up time |
800ms,40ms,20ms/230VAC满负载at full load | ||
| 耐压性 Withstand voltage |
输入输出间：1.5KV输入与外壳间：1.5KV输出与外壳间：0.5KV一分钟 I/P-O/P:1.5KV I/P-FG:1.5kV O/P-FG:0.5kV 1minute |
||
| 隔离电阻 Isolation resistance |
输入输出间输入与外壳间输出与外壳间：500VDC/100MΩ I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ |
||
| 工作温度 Working temperature |
-10℃~+50℃ | ||
| 尺寸 Dimension |
125.5×125.5×100mm | ||
| 重量 Weight |
1.2kg | ||
| 包装 Packing |
41.5×27.5×25CM/12PCS/14.5kg | ||
