对于性能有问题的项目，例如 200W 工业电源，Faithful 品牌在收到之前损坏的电源后准备更换它们或用等效的东西替换它们。 在正常情况下，我们的失败几率是 0.03%。
连接器上的白色帽用于安全设置防尘保护以防止电击
并且我们自己用纯铜做变压器和功率电感器，
weho每月库存：普通款15万套，发货快捷；
耐压 1500V 浪涌输入 5 秒
专业版内置EMI
100% 满载老化测试
全范围 AC 85-264v 输入

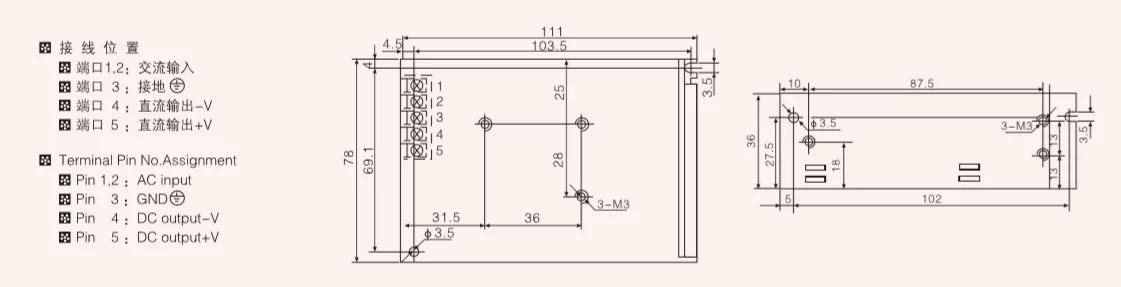

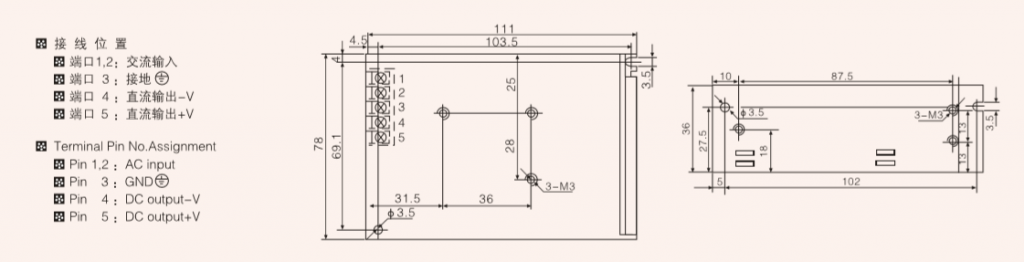

尺寸：111*78*36mm（长*宽*高）
产品
联系我们
- 联系人：朱载超
- 微信：18058838688
- 手机: 13396971133
- 电话: 0577-61777077
- 传真: 0577-61777072
- 邮箱: zaichao@chnwh.com
- 地址: 浙江省乐清市经济开发区纬六路231-2号
| model | MS-60-12 | MS-60-15 | MS-60-24 | |
| output | Dc output voltage | 12V | 15V | 24V |
| Output voltage tolerance | ±1% | ±1% | ±1% | |
| Rated output current | 5A | 4A | 2.5A | |
| Output current range | 0～5A | 0～4A | 0～2.5A | |
| Output power | 60W | 60W | 60W | |
| Ripple and the noise | 100mVp-p | 120mVp-p | 120mVp-p | |
| Dc voltage adjustable scope | ±10% | ±10% | ±10% | |
| Start, rise, keep time | 600ms,30ms,20ms/230VAC | |||
| input | Input voltage range | 170～264VAC 47～63Hz，235～373VDC | ||
| Exchange input current | 0.8A/230VAC | |||
| efficiency | 82% | 82% | 84% | |
| Impulse current | Cold start current 30A/230VAC | |||
| Leakage current | ＜1mA/240VAC | |||
| Protection characteristics | Overload protection | Protection way: hiccups mode, load abnormal conditions can be removed recovery | ||
| environment | Working temperature, humidity | -10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve ) | ||
| Keep temperature, humidity | -20℃～+85℃;10%～95%RH No condensation | |||
| Vibrate resistance | 10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis | |||
| security | Compression sex | Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC | ||
| Insulation resistance | Between the input and output, the output and input: with ground: 100M Ohms/500VDC | |||
| standards | Safety standards | Accord with UL1012 | ||
| EMC standard | Accord with EN55022，CLASSA | |||
| other | weight | 0.27kg 111*78*36（L*W*H） | ||
| packaging | 0.27kg/50pcs/14.5kg/0.9CUFT | |||
| note | 1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value. | |||
| 2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when. | ||||
| 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. | ||||
